Undermount Sink
An undermount sink sits beneath the countertop, so there’s no rim to catch crumbs and you can wipe spills straight into the bowl. It’s a clean look, but it depends on the right countertop, careful installation and choosing a sink material that suits how you cook and clean. This guide covers all three.
Sink materials
| Material | Pros | Watch out for |
|---|---|---|
| Stainless steel | Durable, affordable, heat-proof, many sizes | Scratches show on shiny finishes; thin gauges can be noisy |
| Composite granite / quartz | Hard-wearing, quiet, hides water spots, many colours | Dark colours can show limescale; check heat limits |
| Fireclay | Classic glossy look, very hard surface | Heavy; needs strong support; chips if struck hard |
| Cast iron (enamelled) | Deep colour, quiet | Very heavy; enamel can chip |
| Solid surface | Can be seamless with a solid-surface top | Heat and scratches can mark it |

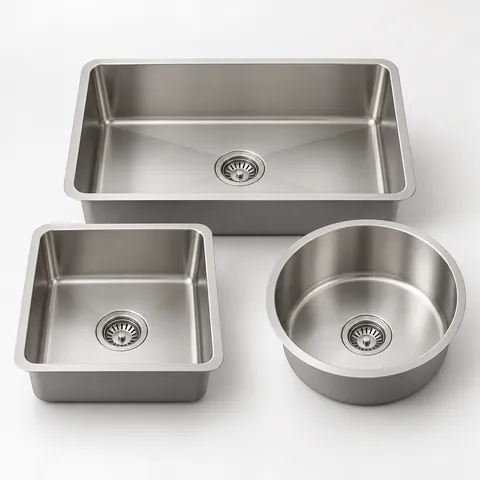

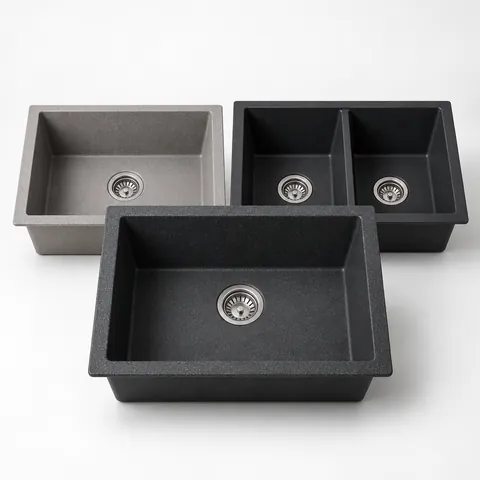

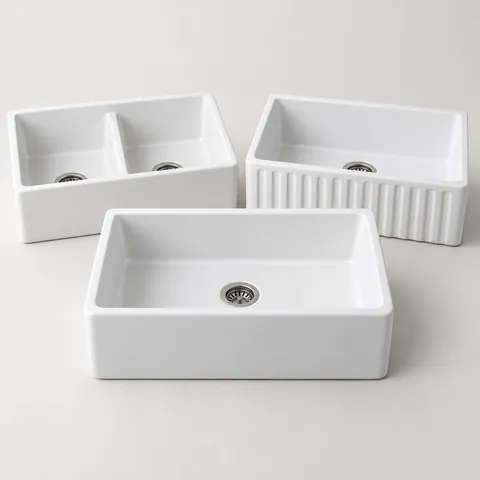

Compare stainless undermount sinks, composite sinks and fireclay sinks.
Stainless steel gauge
| Gauge | Thickness (approx.) | Notes |
|---|---|---|
| 16 | 1.5 mm (0.06 in) | Thicker, more dent-resistant and quieter |
| 18 | 1.2 mm (0.05 in) | Common good-value choice |
| 20–22 | 0.9–0.8 mm | Thinner; more flex and noise |
Lower gauge numbers mean thicker steel. Sound-deadening pads or undercoating reduce drumming noise when water and dishes hit the bowl.
Countertops that work with undermount sinks
- Granite, quartz and other stone: ideal — the cut-out edge is polished and strong.
- Solid surface: works well, sometimes with an integrated sink.
- Concrete: works with a sealed, finished edge.
- Wood: possible with careful sealing, but water at the edge can cause problems.
- Laminate: generally not recommended, because the cut edge of the substrate is exposed to water; special systems exist but check the manufacturer’s guidance.
If you are replacing a sink in an existing stone top, the new sink must fit the existing cut-out and reveal.
Reveal styles
| Reveal | What it means | Look |
|---|---|---|
| Positive reveal | Countertop stops short, showing a strip of sink rim | Rim visible; easier to fit |
| Zero reveal | Countertop edge flush with the sink edge | Seamless look; most precise |
| Negative reveal | Countertop overhangs the sink edge | Rim hidden; edge can collect grime |
Decide the reveal with your fabricator before the top is cut.
Sizes and bowl configurations
| Configuration | Good for |
|---|---|
| Large single bowl | Big pans and baking trays |
| Double bowl (50/50) | Washing and rinsing separately |
| Double bowl (60/40 or 70/30) | A large bowl plus a prep bowl |
| Low-divide double | Two bowls with space for long items |
| Workstation sink | Built-in ledges for boards, colanders and racks |

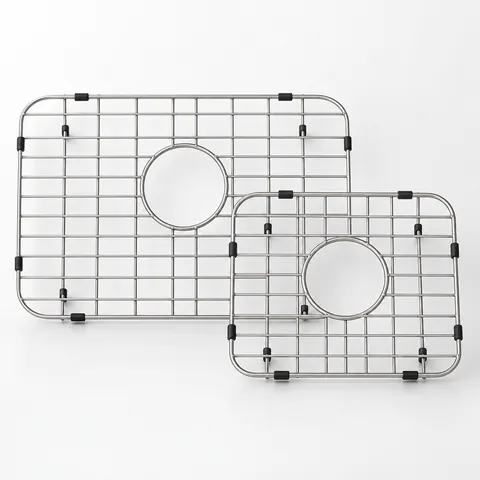

Check the minimum base cabinet width on the sink’s spec sheet — a 33-inch-wide sink often needs a 36-inch cabinet — and the bowl depth against your back and the plumbing. Deep bowls (10 in / 25 cm or more) hide dishes but mean more bending. See bottom grids to protect the bowl.
Installation basics
- Usually installed by the countertop fabricator, before or during countertop installation.
- The sink is fixed to the underside of the top with clips or brackets anchored into the stone and sealed with silicone or epoxy.
- Heavy fireclay and cast iron sinks may also need support rails or a cabinet frame underneath.
- Faucet holes are drilled in the countertop, not the sink, so choose the faucet and accessories first.
- Let the adhesive cure fully before loading the sink.

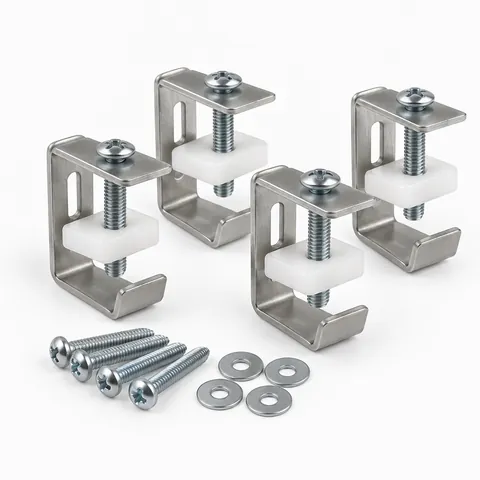

Browse undermount sink clips and mounting kits for replacements.
Cleaning and care
- Wipe the joint between sink and countertop regularly — it’s where grime can build up.
- Use non-abrasive cleaners on composite and fireclay.
- Stainless steel: clean with the grain; avoid leaving steel wool or cast iron pans wet in the sink.
- Check the silicone bead underneath now and then; reseal if you see gaps or leaks.
Who this guide is for
Homeowners planning a kitchen or bathroom remodel or replacing a sink. We explain materials, sizes and installation; we do not run hands-on tests. Check each sink’s dimensions, cabinet requirements, material and installation instructions on the merchant page.
Frequently asked questions
Can you put an undermount sink in a laminate countertop?
It’s generally not recommended because the cut edge is exposed to water; special systems exist — follow the countertop maker’s guidance.
What gauge stainless steel is best?
Lower numbers are thicker; 16 and 18 gauge are common choices.
How is an undermount sink held up?
With clips or brackets fixed to the underside of the countertop plus sealant, and sometimes extra support underneath.
What is a zero reveal sink?
One where the countertop edge lines up exactly with the sink edge.
What size cabinet do I need?
Check the sink’s spec sheet; a 33-inch sink often needs a 36-inch base cabinet.
Does this site test sinks?
No. We explain types and specifications and do not run hands-on tests. Check each merchant’s page for current details.
